YawCam Setup Part 2

Controller-Side walkthrough on setting up YawCam

*For POS setup- Use Step 2

*USE SCRIPT ONLY IF NEED TO USE ON REG1*

Change Setting in ControlPanel to enable picture taking. Setting name is “Reg_CaptureProfilePic”.

Copy Sp_browser1 file in CS and create one for each terminal.

Create additions reg profiles in DB controlpanel. Us following script to copy a profile. The names in red are the profiles.

-- ClubspeedV8

DECLARE @FROM varchar(50)
DECLARE @To varchar(50)

SET @FROM = 'off1'
SET @To = 'off2'

INSERT INTO ControlPanel(TerminalName, SettingName, DataType,
DefaultSetting, SettingValue, Description, Fixed, CreatedDate)
SELECT     @TO, SettingName, DataType, DefaultSetting, SettingValue,
Description, Fixed, CreatedDate
FROM         ControlPanel
WHERE TerminalName = @FROM

INSERT INTO IntakePanel( TerminalName, ID, PanelName, TaskID)
SELECT     @TO, ID, PanelName, TaskID
FROM         IntakePanel
WHERE TerminalName = @FROM
Go

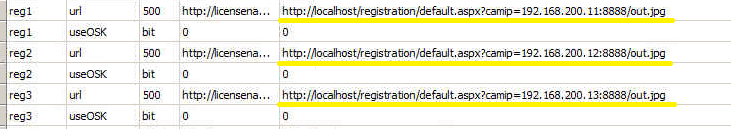

Update URLs for all reg terminals using cameras in DB. Should look like this: (http://localhost/registration.default.aspx?camip=___.___.___.___:8888/out.jpg)

2. For POS terminals you will need to set up two fields. See image:

3. Needs main engine restart and test it on profile in venue

Login to each new terminal with the environment settings off. This is to create the profiles and set up IE. (For REG1 setup)
