MyLaps - Decoder Image References

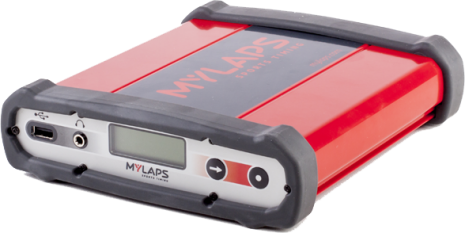

MyLaps X3 Decoder

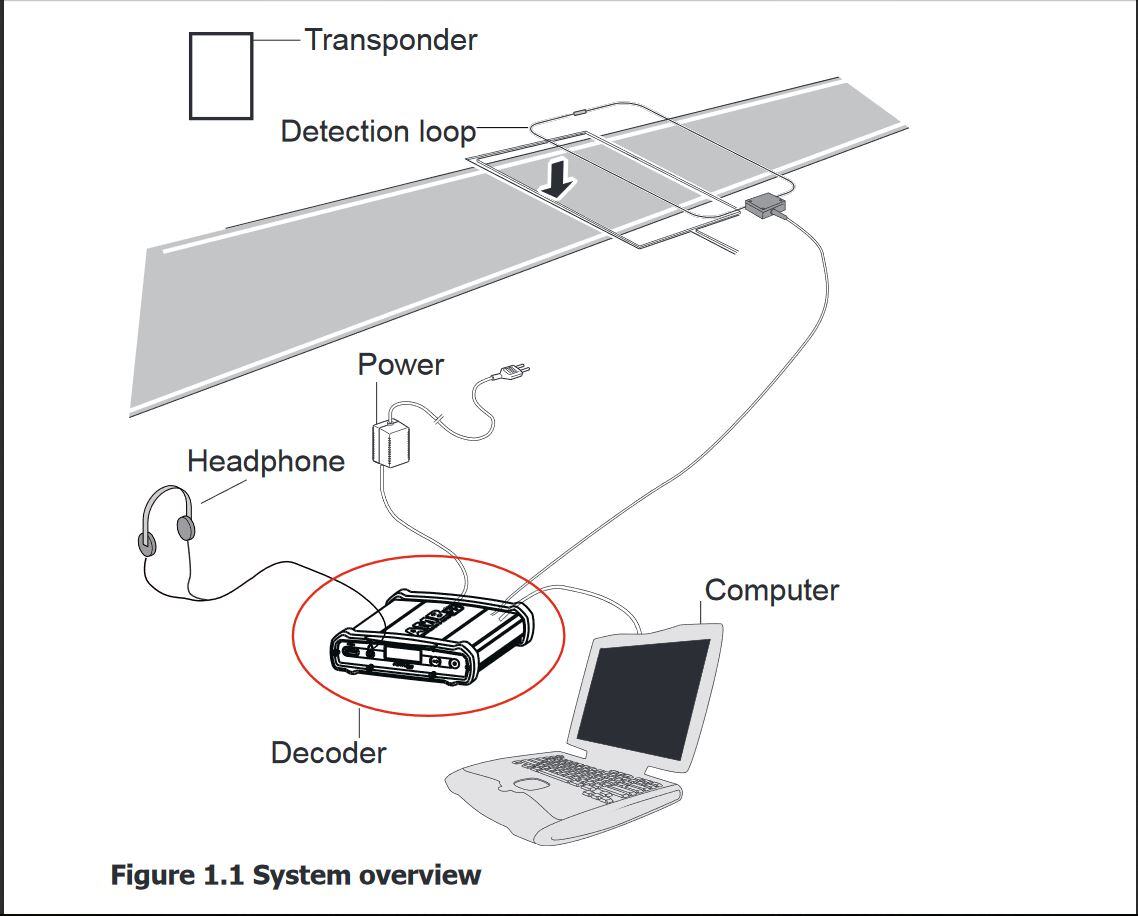

Visual of how Decoder and Timing Loop connect.

Transponders - Work on both old X3, and new X2 decoders...

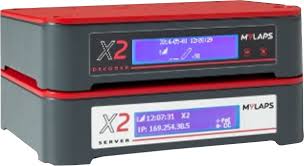

NEW X2 Decoder (Top)+ Server (Bottom) setup!

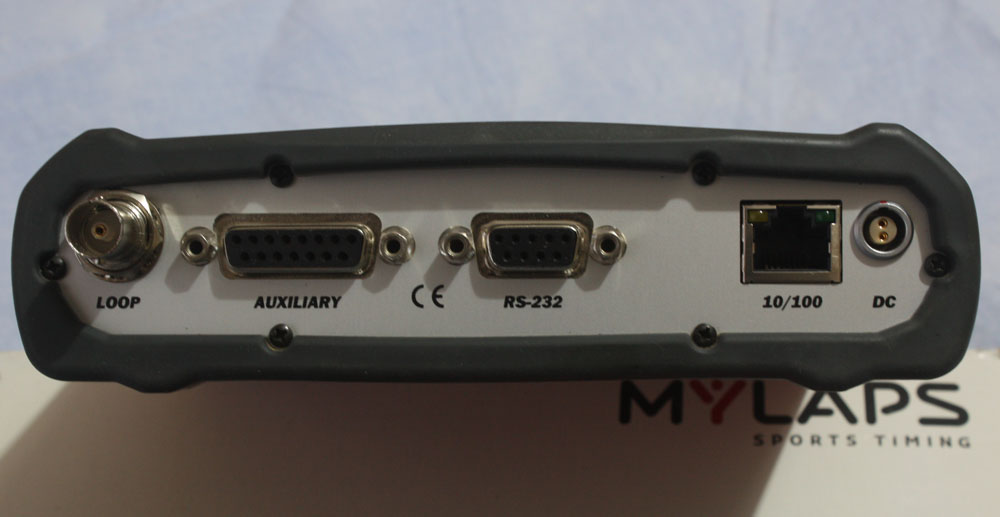

Back of X3 Decoder - Loop coax plugs into the Far left, Network cable and Power (DC) on the right ...

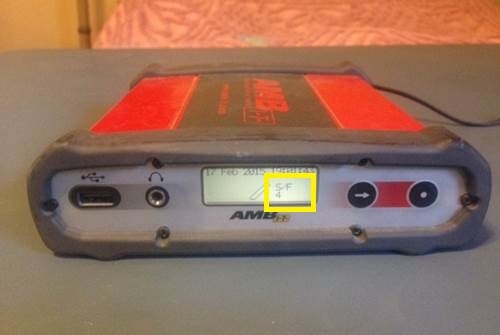

Front screen of X3 Decoder where you can see the forward slash (Kart Passings) and the S/F (sound frequency level - should be below 90)

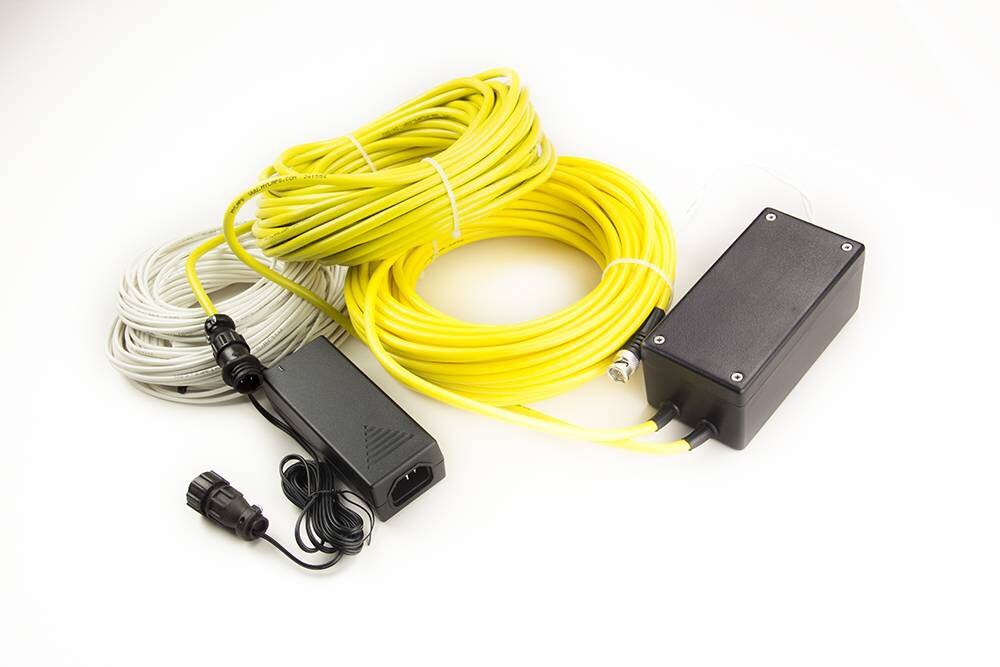

Active Loop (White Antenna) with yellow Coax [power + Timing info]

Another visual of how the decoder and loop connect - NOTE: we connect via Network cable, not Serial!
