WORKING -Installing RD Gateway (2012)

The purpose of this is to allow for remote access of Club Speed when port 3389 is closed.



How it works:

Instead of going over port 3389, the connection is using the SSL cert already on the server and connecting over port 443, thus allowing for a much more secure connection.



Install Steps:

  1. Open Server Manager
  2. Click on Manage
  3. Click "Add Roles and Feature"
  4. Click on Server Selection and Then Click Next
  5. Expand Remote Desktop > Select Remote Desktop Gateway.
  6. Select "add Required Role Services" on popup. Then select 'Next'
  7. Click Next all the way to the end just using Defaults
  8. Click Install



Configuration Part 1:

  1. Open Remote Desktop Gateway Manager Program (not Server Manager)
  2. Right Click on the server on the left
  3. Click Properties
  4. Click on SSL Certificate
  5. Select Import a Certificate THE RADIO BUTTON.
  6. Click Browse and Import
  7. Navigate to C:\Installfiles\Step-14IIS Setup
  8. Select the clubspeedtiming2022.pfx or  clubspeed2022.pfx (depending on their site settings and both files are attached below)
  9. Enter in 20nvadwiqf78w
  10. Click on Server Farm
  11. Enter in the server name in the left Column
  12. Press Add
  13. Press Refresh Status

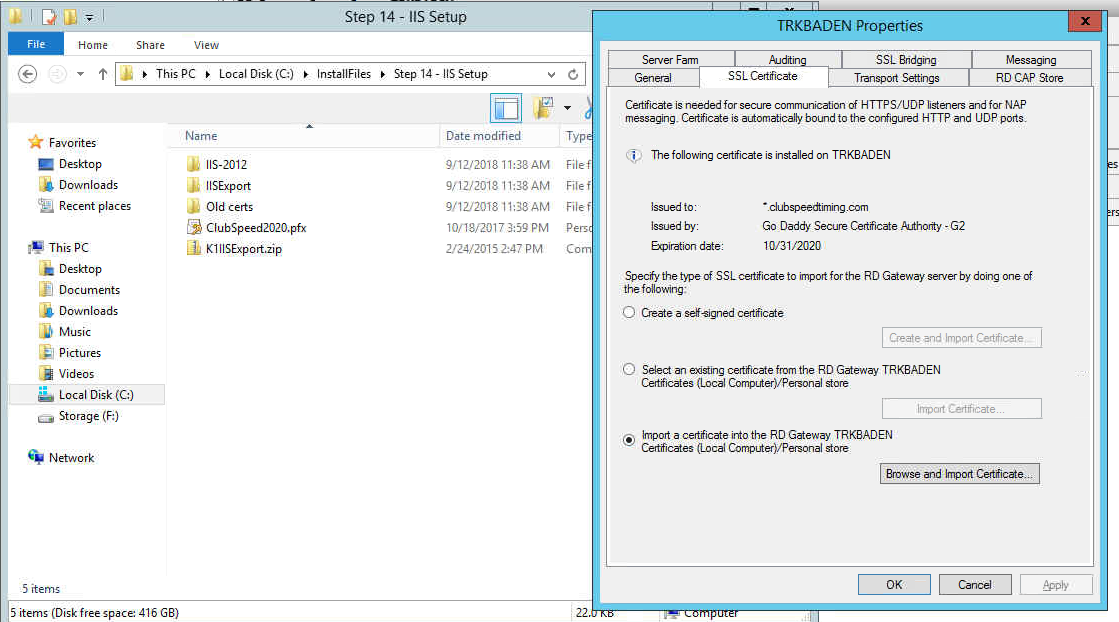

9a

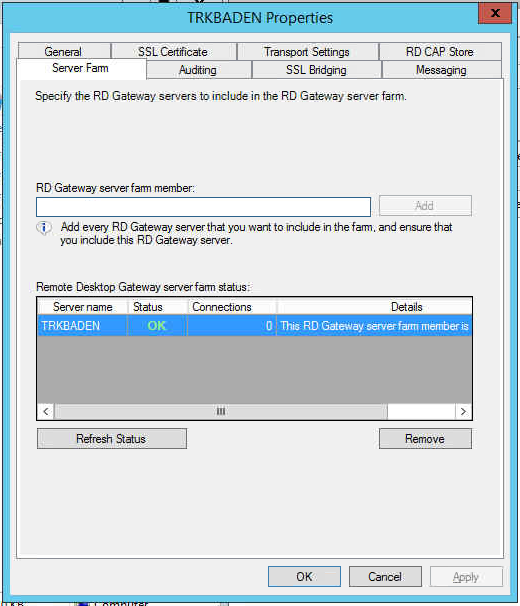

10-13a



Some Additional Troubleshooting if Necessary:

  1. It may say status "Unreachable" If it does, proceed below
  2. Open Server manager
  3. Click Remote Desktop Services
  4. Click on Servers
  5. Under Services, Click on Remote Desktop Gateway
  6. Right Click . Restart
  7. Go back to the server farm and refresh
  8. Should now read OK



Configuration Part 2:

  1. Expand the server on the left
  2. Expand Polices
  3. Select Connection Authorization Policies
  4. On the right, click Create New Policy > Select Wizard
  5. Select Create a RD CAP and a RD RAP > Next
  6. Enter TS_CAP_01
  7. Click Add group, Enter RDP > Ok > Next
  8. Next > Next > Next
  9. Enter TS_RAP_01
  10. Click Add group, Enter RDP > Ok > Next
  11. Click Allow users to connect.... > Next
  12. Next
  13. Finish



Configuration Part 3:

  1. Download the attached file and Unzip
  2. Run the Createapps2.bat file (Keep hitting enter)

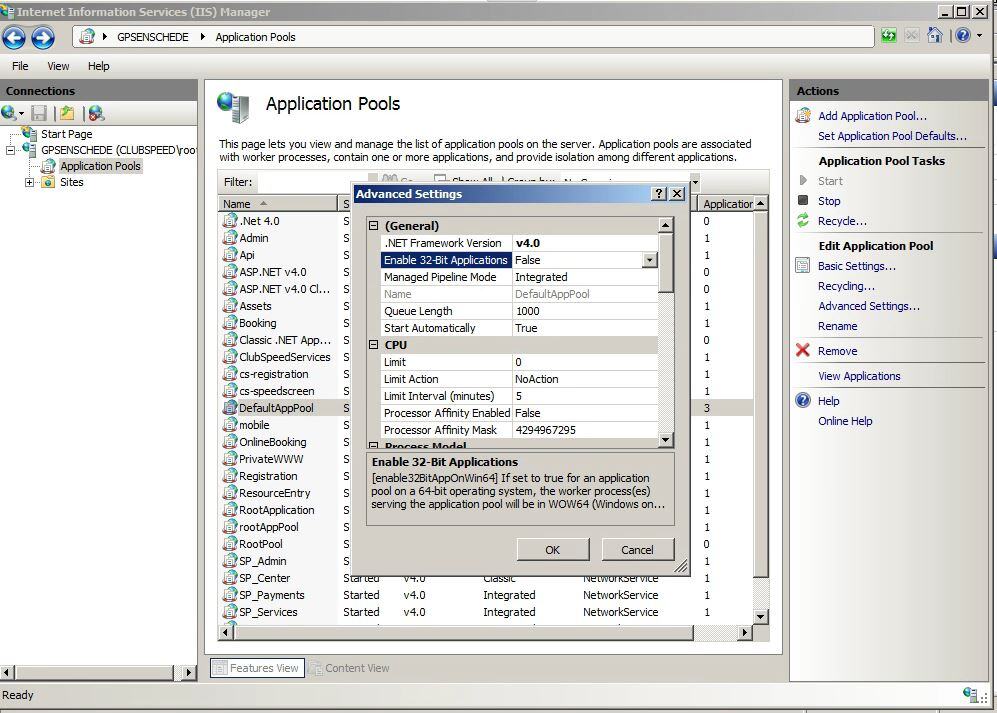

  3. Open IIS
  4. Click on App Pools
  5. Click on Default App Pool (Should only have none CS applications in it) (3-4 in total)
  6. STOP: If there are any Club Speed Processes still in DefaultAppPool, you need to run Creatapps.bat as well
  7. Select Advanced settings
  8. Set Enable 32-bit Application to FALSE

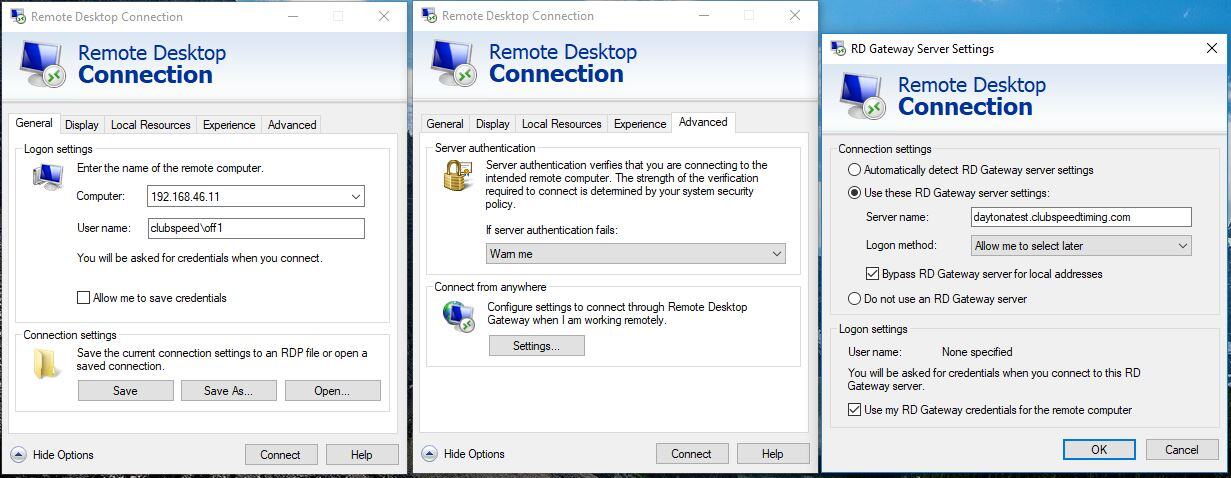

Testing the Connection:

  1. Open RDP on your computer (in office)
  2. Click Show Options if minimized
  3. Click Advanced
  4. Under "Connect from anywhere" Click "Settings..."
  5. Select Use the RD Gateway server Setting
  6. Enter in the domain name for Server name
  7. Under Login Setings, Select "Use my RD Gateway credentials for the remote computer"
  8. Press OK
  9. Go to the General Tab
  10. Computer is the Local Server IP address (192.168....)
  11. Username is  Domainname\off1 (replace domain name)
  12. You can allow to save credentials if you want
  13. NOTE: If you are setting this up for a client, Click "Save As..." at this point. (You can email them the file. They will need to input the password)
  14. Click Connect
  15. Enter the RDP password for Off1




If you have any questions, speak with Level 2.

zip (57.1 KB) pfx (3.5 KB) pfx (3.54 KB)
